TOREA Reborn
The saga of a 20 month haul out

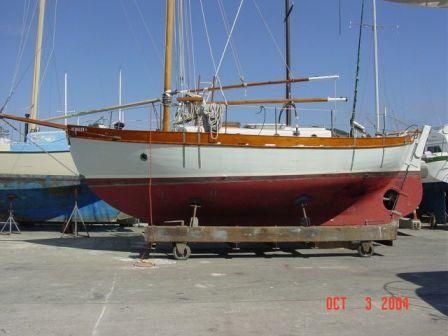

October 3, 2004
The 6 week which became 20 month
and counting restoration begins
Broken frames
Over 75% of TOREA's frames were
broken or repaired with Bondo

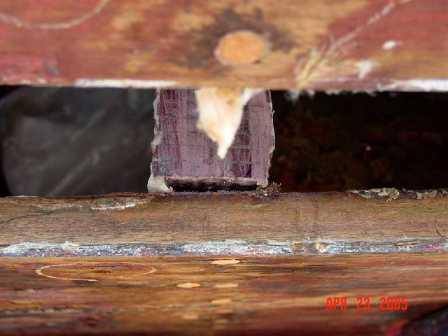

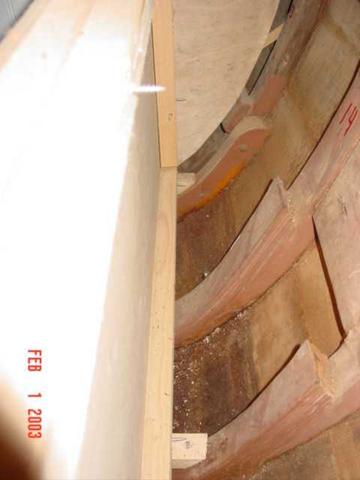

Existing frame repair
Existing frame repairs were sistered or
scarfed

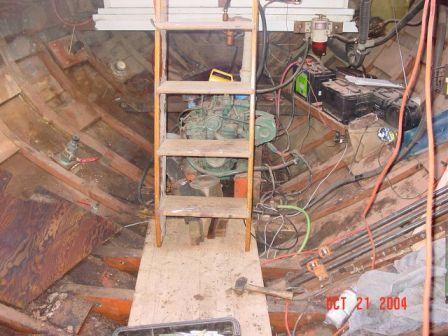

Interior removed
The demolition of the old interior begins

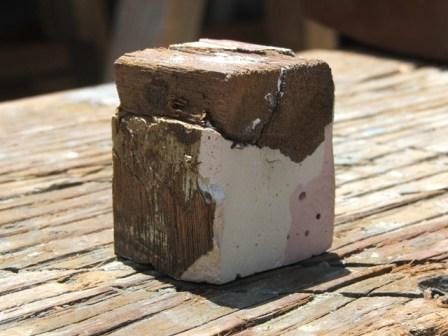

Bondo frame
Bondo frame repair cross section.
Not much wood left

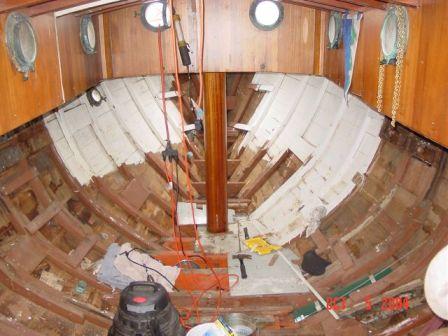

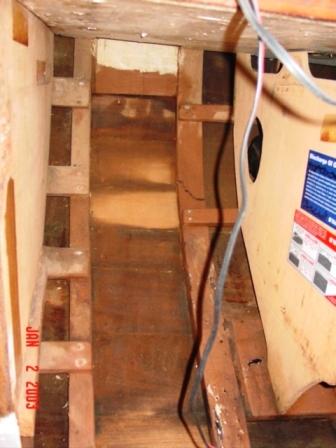

Forward interior removed

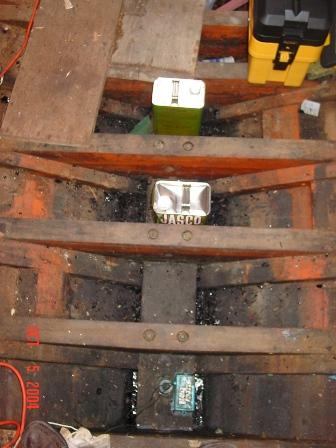

Frame heel and Floor timber
Pitch dug out to reveal frame heel and
floor connections

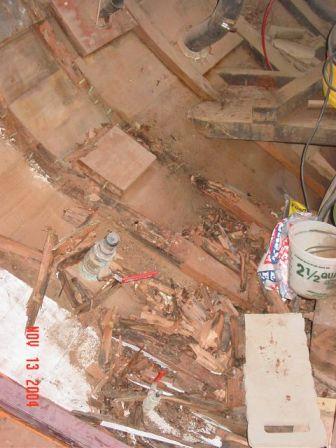

Frame removal
Eventually all frames except 3 pairs in
the bow and stern were replaced.

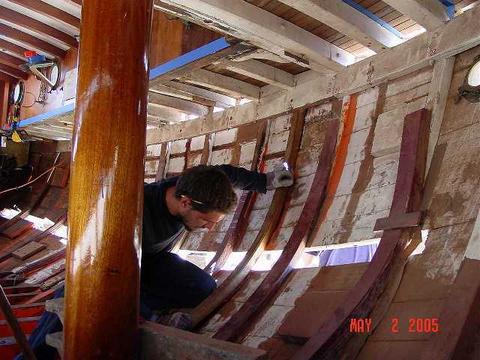

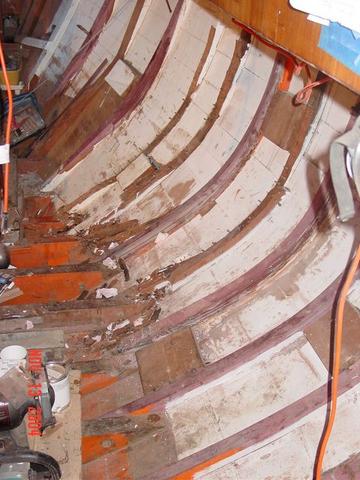

Purpleheart lamination
First half of laminations in place and
prepping for last half of frames

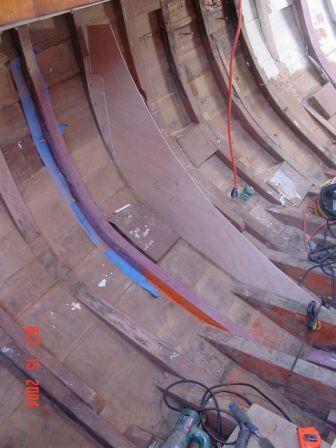

Cutting angled scarf for laminating
Purple heart was laminated onto old frame
using the dish scarf method
Failed lamination
After 2 weeks many of the lamination
were pulling away from the hull or
separating along the lamination glue
lines
Biting the bullet
Removing all the previously installed
Purpleheart laminates and steam
bending full length oak frames.

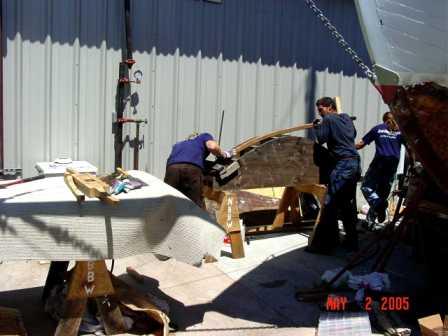

Pre-bending first frame
First frame is just out of the steam box
and is pre-bent before being passed
inside.
Laying up new oak frame
New oak frame being walked up the
planking before being fastened

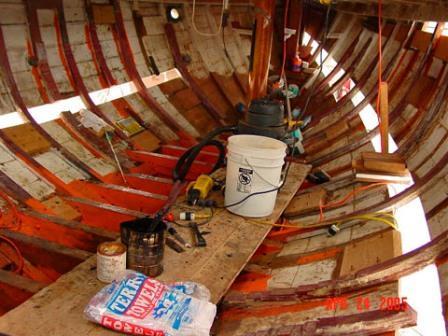

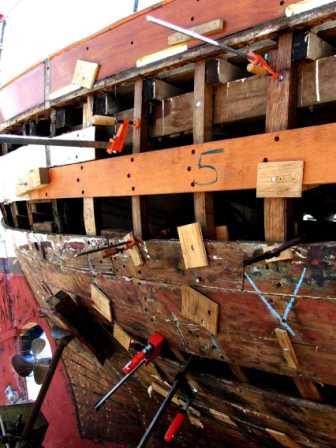

Frames replaced and planking begins
Planks are fastened using #16 x 2/12" bronze
screws
